Miscellaneous

BODY TEMPERATURE PROBE (CONTACT TYPE)

• A cost-effective body temperature measurement probe is developed using miniature high resolution thermometer. The product is a spin-off from the Expendable Bathy Thermograph (XBT) developed by the laboratory
• The Body Temperature Probe, consists of a very small thermistor on a pen-like attachment which can detect the body temperature by placing the tip on the mid-arm or forehead region. A hand-held processing unit displays the temperature, and based on the same, highlights whether the person is normal or feverish.
• The kit has high accuracy with a very short response time
• This cost-effective product is designed as two variants
• The first variant is for industrial use, in which the probe and display-cum processing unit are separate units connected by a cable. Both the persons, the one whose temperature is measured and the one noting the measurement, are thus separated apart.
• This unit draws power from the general 230 V AC mains.
• The probe is inserted in a holder which contains sanitizing medium
• In the second variant, the probe and the display-cum processing unit are integrated in a single casing. This variant draws power from a small battery and can be used for domestic purposes also

BODY TEMPERATURE PROBE (NON - CONTACT TYPE)

• An indigenous version of the IR-based thermal scanner has been designed.
• Small infrared sensors are used as the sensory elements. The requisite electronic circuitry has been designed for the data acquisition and processing. A small display screen is provided to show the value of temperature and also indicate whether the person is feverish or normal. The device is light in weight.

ANYWHERE ERECTABLE ISOLATION SHELTERS

• Various shelters, green power sources, chemical toilets, quick erectable medical complex have been develoepd under various projects related to field-defence and CBRN protection. These products with minor modifications / customisation, can be utilized for activities pertaining to containment of COVID 19.
• Industry partners are developed, who are capable and willing to take up productionisation of these products to meet the emergent requirements.
• These products will be useful especially in the remote locations, where there is no medical/electrical facility available. The details of these products in standalone mode and as integrated system are given below.

SANITIZER WITH ATTENDANCE GEAR AND TEMPERATURE MONITORING (SWAGATAM)

• A system has been developed by DIPAS for non-contact card based attendance and temperature monitoring along with sanitizer dispenser simultaneously covering every aspect of safety against Covid-19.
• System has in-built card reader which is connected to the server via GSM & GPRS. An ultrasonic sensor sends out high frequency sound waves (about 40Khz) in the direction of detection, and receives the reflection from nearby objects and gives distance reading by processing the echo time.
• Once, a person punches the card, his/ her card number, current date and time of arrival/exit along with temperature details (96° F to 107.6°F) will be saved on the server. Upto 40000 records can be stored in device itself.
• This data can be accessed from the server with the help of API/Interface and thus can be used for Employee Attendance System accordingly.
• The system has been tested and found easy to use, stable in performance and user friendly.
• Temperature can be recorded at distance 2cms to 4cms. Whereas sanitizer can be used at distance of 2cms to 20cms.

STANDALONE SHELTER

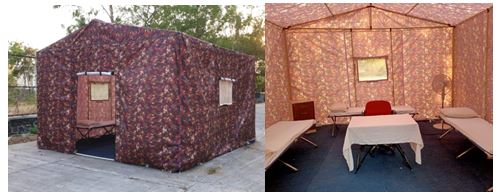

• Three Bed Quarantine Shelter
• Quick erectable 3 bed shelter with power connection. Accessories (optional): Fan, Light, 3 Beds & Buckets
• Can be used as extension of  city hospital to accommodate patients
• Approximate Cost: Rs 1 Lakh/-
• Production Capability: 10 Per day

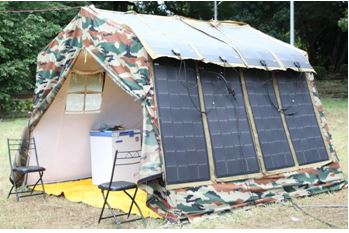

MEDICAL EXAMINATION SHELTER WITH GREEN POWER SOURCE

• This metallic structure with water proof fabric shelter is of size 12’x12’x9’ and can be utilised for medical examination and check up of suspected COVID19 patients.
• This shelter can be erected within 1 hr with 4 persons.
• Upto 1.5 KW green energy power source for 24x7 operations is in-built. It is  a ready to use setup along with all essential electrical devices and gadgets.
• One bed, table chair and other essential accessories will be housed in this shelter.
• This can be easily used in remote and field areas. This can also be used as remote monitoring and control centre.

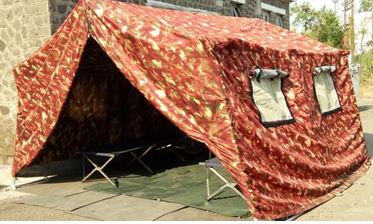

TWO BED QUARANTINE MODULE

• Shelter of size 14’x14’x9’ can be utilized as a quarantine shelter for two patients.
• This shelter will have essential electrical gadgets, 2 beds, tables and other minimum accessories.
• This total facility can be deployed within 2 hrs time with 6 person

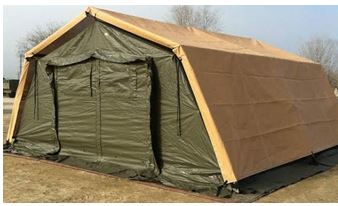

FOUR BEDS QUARANTINE MODULE

• Shelter of size 20’x20’x9’ can be utilised as    quarantine shelter for four patients.
• This shelter will have essential electrical gadgets, 4 beds, tables and other minimum accessories.
• This total facility can be deployed within 3 hrs time with 6 persons.

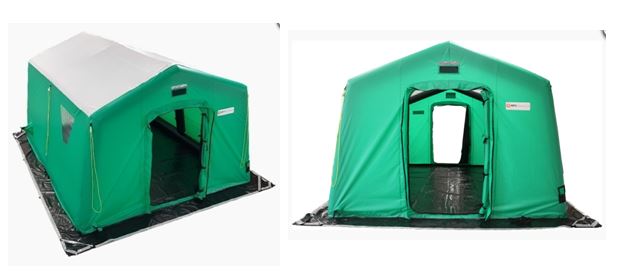

INFLATABLE SHELTER MODULE

• The shelter can be utilized as quarantine centre ward for 10 patients.
• It can be erected in one hour with team of 10 personnel.
• This has inbuilt toilet module.

INTEGRATED MEDICAL COMPLEX

• This will be a genset-powered, quick deployable, air conditioned medical facility suitable for remote locations
• It has the capacity to accommodate 16 patients
• This has inbuilt toilet modules
• In this way many combinations of these shelters can be worked out to scale the facilities

NEGATIVE PRESSURE INFLATABLE ISOLATION SHELTER FOR TEN OCCUPANTS

• A Negative Pressure Shelter is developed for isolating and treating the patients without the risk of spreading the contamination to others.
• This system is suitable for isolating COVID 19 patients since the system is based on negative pressure and the materials used have passed Synthetic Blood penetration Test
• The system consists of Negative pressure based Air Handling Unit, and Inflatable Multiple Chambers
• The system has five numbers of Air Sterilizer Units and ducts are uniformly distributed to provide filtered air.
• It covers a total area of approximately 1000sft and is manufactured out of two layer water-airproof fabric
• The structure has separate rooms for decontamination & medical waste
• The structure is equipped with modular rest rooms and is illuminated with sufficient light throughout.

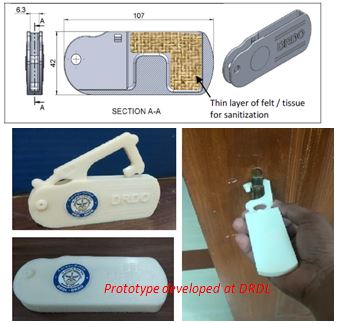

MULTIPURPOSE DOOR OPENER TOOL

• In day to day life, the usage of objects such as door handles, cupboard handles, key pads of lifts, ATM kiosk key pads, computer keyboards can become means of spread of the COVID-19 virus. It is very difficult to ensure continuous sanitization of these common objects.
• A multipurpose door opener tool is designed using 3D printing process and thermoplastic material.  It is ergonomically designed, compact and very handy tool to provide a touch free operation of most of the commonly used objects such as door handles.
• This tool is made up of two parts, a hook and a cover. The hook is designed considering the common sizes of door handles. The hook is also provided with a tip to operate the key pads at ATMs, Lifts and Keyboards. The cover is designed to accommodate thin layer of felt or tissue to sanitize the tool when closed. Hence, it will be safe to handle the tool for frequent use.

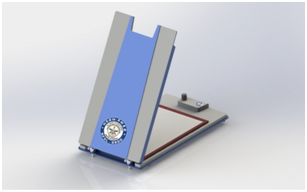

PAPER DISINFECTOR

• To meet the imminent need to disinfect daily paper-based items entering an establishment, a product called Paper Disinfector is developed .
• Paper / envelopes up to A4 size can be disinfected using the device
• The device consists of two foldable halves - an upper lid and a lower lid
• To disinfect various paper-based items entering the establishment at the security office or the central registry, like entry passes, DAK, tender documents, currency notes etc., the operating person lifts the upper lid and asks the incoming visitor to place the item on the lower lid. He then closes the upper lid. The paper-based item is heated in between the two lids.
• Heating is done by means of Nichrome wire of selected resistivity which is placed inside a glass wool / mica sleeve, and sandwiched on a conductive cloth, and further wrapped in velvet for retention of heat. Two such sets of heating pads are used, one fixed on the bottom of the upper lid and the other on the top surface of the lower lid.
• The system draws electrical power of approximately 120 Watts, and has controls including ON/OFF switch & Indicators, fuse and timer control. There are different operation modes for the type of item like paper, currency, envelope etc. depending on the settings for temperature and exposure time.

PERSONNEL SANITIZATION DISINFECTANT LIFE ENHANCER

• HEMRL has developed a hydrogen peroxide based disinfectant with additives referred to as PerSan Enhancer (RTU) [RTU = Ready to use, no dilution required].
• The major ingredient of the enhancer is distilled / RO water, free of suspended matter. Hydrogen peroxide is the active ingredient which is 6 – 7 times more effective in microbicidal activity than hypochlorite in liquid form. It is well reported that in vapour phase the microbicidal efficiency of hydrogen peroxide is further enhanced especially in aerosol form.
• The composition of disinfectant solution has been optimized in association with National Chemical Laboratory, Pune. The disinfectant solution contains 0.25% hydrogen peroxide with additives in distilled or RO water. The disinfectant fog deployed for 15 seconds is found to be effective against all the microbes.

INNOVATIVE TECHNOLOGY INTERVENTIONS

• PPE Seam Sealant Development to overcome shortage of sealant tape and its Applicator Assembly
